Compatible Devices: Internet Protocol Camera, Router, Switch
Product Dimensions: 3.6"L x 2.3"W x 1.3"H
Data Link Protocol: (function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-5:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-5'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) }); })); IEEE 802.3at Type 2 / PoE+ (30 W), IEEE 802.3af Type 1 / PoE (15.4 W), IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3i (10BASE-T), IEEE 802.3bz (2.5GBASE-T), IEC 61000-4-2 Level-4 ESD protection (8kV contact/15kV air) See more
Data Transfer Rate: 2.5 Gigabits Per Second
Item Weight: 0.22 Pounds
UPC: 065030905787
Manufacturer: StarTech.com
About this item

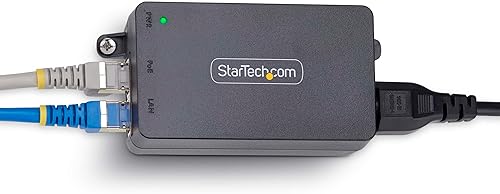

2.5GbE POE INJECTOR: Multi-gigabit single port midspan PoE+ injector supports up to 2.5Gbps with auto-negotiation; TAA-compliant Power Sourcing Equipment supports up to 30W PoE/PoE+; Features level-4 ESD protection for reliable performance and durability
NETWORK FLEXABILITY: Auto-negotiation between 2.5Gbps & 10/100/1000Mbps Ethernet; Deliver data/power to PoE devices up to 328ft/100m w/Cat5/5e/6/6a cabling; Unmanaged inline injector w/built-in LAN transformer for electrical isolation; 2K surge protection
HASSLE-FREE INSTALLATION: Integrated anchor points for surface mounting; Streamline deployment without additional software/settings; Connect the PoE injector to the network (e.g., switch or router) & the remote PD via standard Cat5/e or Cat6/6a cabling
APPLICATIONS: Enable data & power over a single RJ45 connection in high end enterprise access points such as high resolution IP cameras; Maintain existing network infrastructure while adding PoE functionality to support remote devices
TECH SPECS: x2 RJ45 ports (data/data+power); 54VDC 0.6A output; 30W max output; Compliant with IEEE 802.3af and 802.3at; 10M/100M/1G/2.5G with auto negotiation; WoL/PXE/9K jumbo frames; Wall mountable; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm)
