Product details
Antenna: Radio
Brand: Egasky
Color: White
Number of Channels: 1
Impedance: 50 Ohm
Maximum Range: 30000 Feet
Product Dimensions: 12.6"L x 2.1"W x 8.1"H
UPC: 603981119602
Manufacturer: Egasky
Number of Items: 1
About this item
Stay Connected from Afar: The EGLPDA-0637-D7/10/12 passive log periodic antenna from Egasky enhances connectivity. It is compatible with major US cellular carriers, including AT&T, Boost Mobile, Cricket Wireless, FreedomPop, Google Project Fi, H2O Wireless, Lycamobile, MetroPCS, Mint Mobile, Sprint, Straight Talk, T-Mobile, Ting (GSM), US Cellular, and Verizon Wireless, providing stable connections on compatible devices.

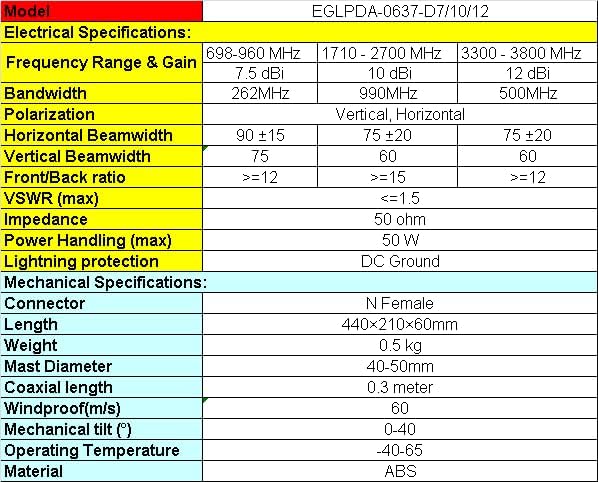

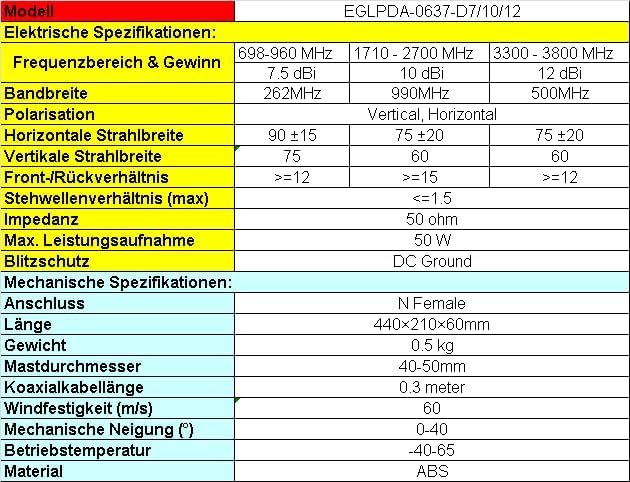

This directional antenna has a frequency range of 698-960 MHz/7 dBi and 1710-2675 MHz/10dBi ; 3300-3700 MHz/12 dBi, improving signal on mobile phones, WiFi, and mobile network technologies (3G, 4G, 5G, LTE). Enjoy optimal coverage and high-quality connections.
Working Principle: As a passive directional antenna, the log periodic design is ideal for connecting 5G routers or signal boosters. When 5G signals within its effective frequency range reach the antenna, the metal conductors interact with the electromagnetic waves, inducing a current. The antenna is specifically designed to receive signals more effectively from particular directions, minimizing interference from other sources.
Signal Directionality: The unique structure of the antenna allows it to focus on incoming signals in designated directions. By directing the energy from the received electromagnetic waves, the antenna improves the quality of the signal transmitted to the connected device.
Passive Nature: This antenna cannot emit RF energy independently and does not contain any electronic components, meaning it cannot function on its own. Customers should be aware that simply installing this antenna will not enhance signal strength for all mobile devices without a compatible transmitter or router. This product is aligning with FCC regulations.
Easy Compatibility: With the right adapter cable, this antenna can be easily swapped with popular routers and devices such as Cradlepoint IBR900 Series and Sierra Wireless Airlink RV55. Choose the appropriate cable for full compatibility.
RFID & IoT Ready: This antenna is suitable for RFID systems using UHF frequencies and IoT applications like Sigfox and LoRaWAN, making it ideal for smart homes, environmental monitoring, and smart cities.
Package Contents: Includes 1 LPDA Antenna (N Female on 12 inch LMR 195 pigtail), 1 Antenna Bracket (5.3 inches), 1 U-Bolt (max pole diameter 2 inches), 1 Pipe Bracket, 2 Nuts, 2 Screws.
MIMO Setup Compatibility: The new bracket allows vertical ±45° installation for MIMO configurations. For optimal performance, install two antennas at a 90° angle to create two channels (two antennas required for this setup).
