PN532 NFC HAT Compatible with Raspberry Pi 5/ 4B/3B+/3B/2B/A+/Zero W/WH/Zero 2 W/Pico/Pico 2W, PN532 Chip, Support Multi NFC/RFID Cards, 13.56 MHz Band, I2C, SPI, and UART Interfaces
$24.95
🌸 Cute & Stylish Hair Accessories
🚚 Free Shipping on $24.95 📦 Ships in 3–5 Days
🔍 Carefully Inspected 💫 21-Day Returns
Product details
Brand: UeeKKoo
Model Name: PN532 NFC HAT
Connectivity Technology: I2C, SPI, UART
Included Components: MIFARE Classic 1K Card x1, PN532 NFC HAT x1
Operating System: Linux
About this item
This is PN532 NFC HAT based on PN532 operating in the 13.56MHz frequency range. NFC (Near Field Communication) is a wire-less technology that allows contactless point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control systems, smart tickets, meal cards, etc. Based on the popular NFC controller PN532 with multi-interface options, this HAT will easily enable NFC function for RPi.
Standard Pi 40PIN GPIO extension header, Compatible with Raspberry Pi series boards ( like Pi 5/ 4B/3B+/3B/2B/A+/Zero W/WH/Zero 2 W/ Pico/Pico 2W, etc.)
Onboard PN532 chip, supports various NFC/RFID cards like MIFARE/NTAG2xx, etc. Breakout control pins, for easily connecting with host boards like STM32/Ardu.
Three interface options: I2C, SPI, and UART, configured via jumpers and switches.

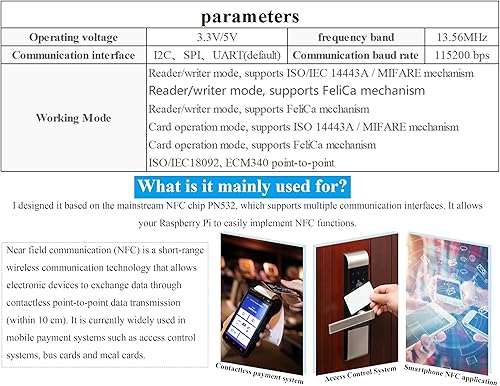

Operating voltage: 3.3V/5V. Factory communication baud rate: 115200 bps. The NFC module operates in the 13.56 MHz band.
Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3tlyyEb
